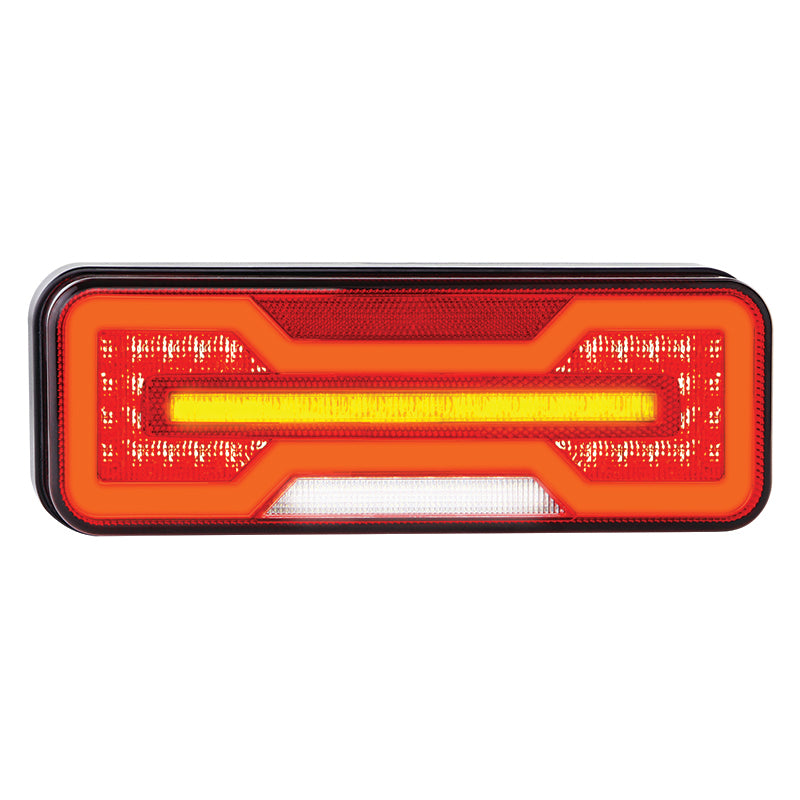

LED Rear Light

This is a high-performance, combination rear lamp, designed for 12V and 24V vehicle systems. It integrates stop, tail, dynamic indicator, reverse, fog, and reflector functions into a single, compact unit.

Key Features:

• Comprehensive Functionality: Provides stop, tail, dynamic indicator, reverse, fog, and reflector functions.
• Right-Hand Specific: Designed for right-hand side installation.
• Multivolt Compatibility: Operates on both 12V and 24V systems (12/24V Multivolt).
• Diffused Tail Light: Offers enhanced visibility and a modern aesthetic.
• Dynamic Indicator: Features a sequential, sweeping indicator light pattern.

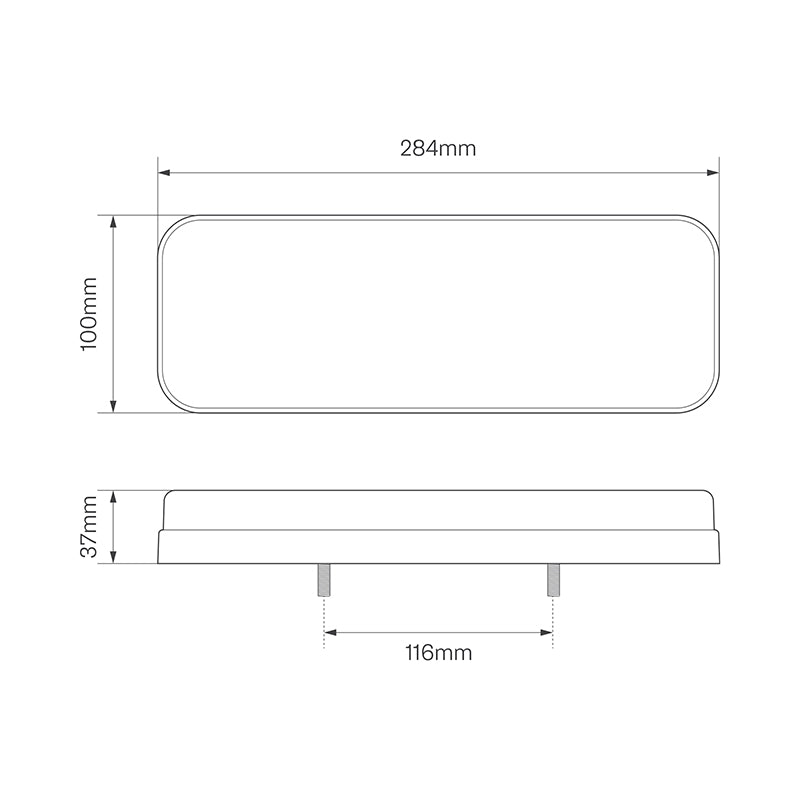

• Compact Dimensions: Measures 284mm x 100mm x 37mm.
• Low Current Draw:
  • Stop: 0.18A (13.8V) / 0.08A (28V)
  • Tail: 0.14A (13.8V) / 0.07A (28V)
  • Indicator: 0.3A (13.8V) / 0.15A (28V)
  • Fog: 0.24A (13.8V) / 0.12A (28V)
  • Reverse: 0.14A (13.8V) / 0.08A (28V)
• Regulatory Compliance:
  • ECE R10 (Electromagnetic Compatibility) Approved
  • ECE R3 (Reflecting Devices) Approved
  • ECE R38 (Rear Fog Lamps) Approved
  • ECE R6 (Direction Indicators) Approved
  • ECE R7 (Position (Side) Lights, Stop Lights and End-Outline Marker Lamps) Approved
  • ECE R23 (Reversing Lamps) Approved.
• Ingress Protection: Rated IP67 for dust and water resistance.
• Warranty: Backed by a 3-year warranty.
• Availability: Available in both right and left hand versions.
