Hamburger Lamp

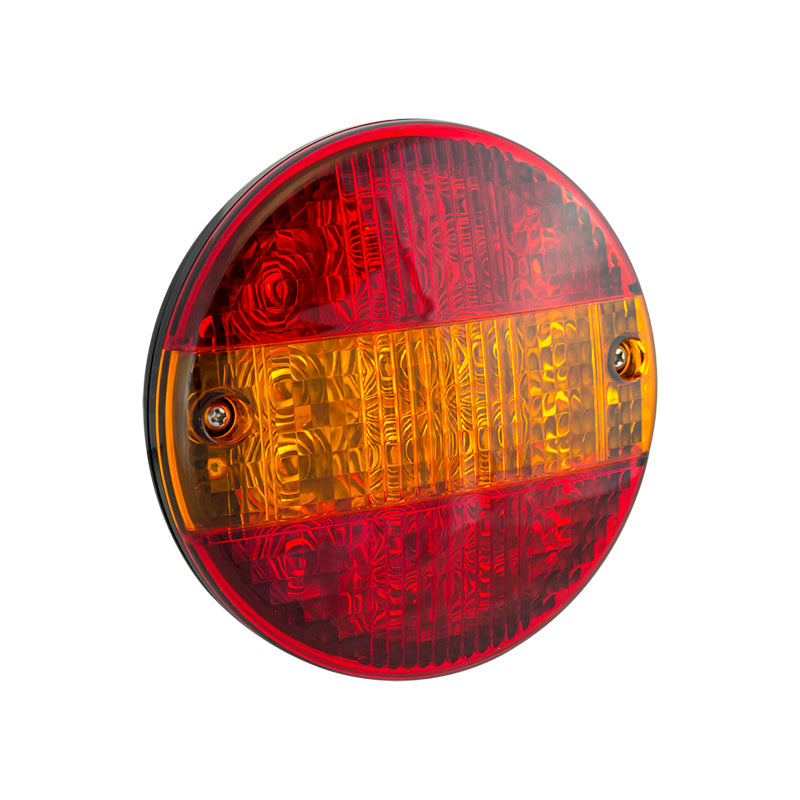

HB140STIM Combination Rear Lamp

The HB140STIM is a robust and versatile 'Hamburger' style rear combination lamp designed for a wide range of vehicle applications. This lamp integrates stop, tail, and indicator functions within a compact, low-profile design.

Key Features:

• Functionality: Stop/Tail/Indicator

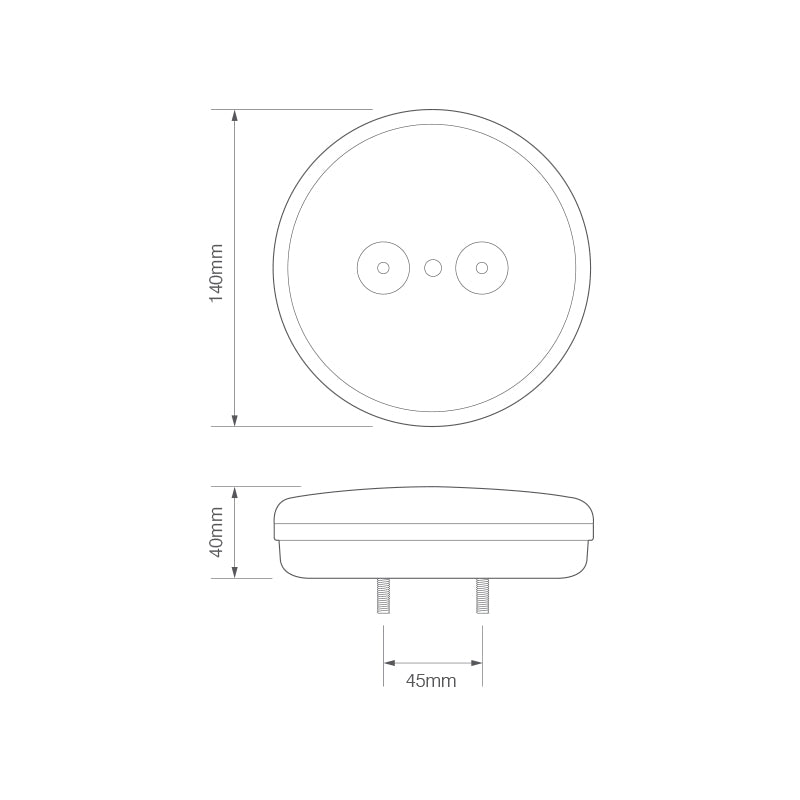

• Dimensions: 140mm (width) x 40mm (height)
• Voltage: 12/24V Multivolt operation, ensuring compatibility with various vehicle electrical systems.
• Protection: IP67 rated for superior ingress protection against dust and water, making it suitable for demanding environments.
• Construction: Slimline bracket and a durable, shock-resistant acrylic lens.
• Illumination: High-brightness LEDs for optimal visibility.
• Durability: Shock, water, and dust proof construction for extended service life.
• Current Draw:
  • Stop: 0.16A (13.8V) / 0.15A (28V)
  • Tail: 0.16A (13.8V) / 0.05A (28V)
  • Indicator: 0.17A (13.8V) / 0.12A (28V)

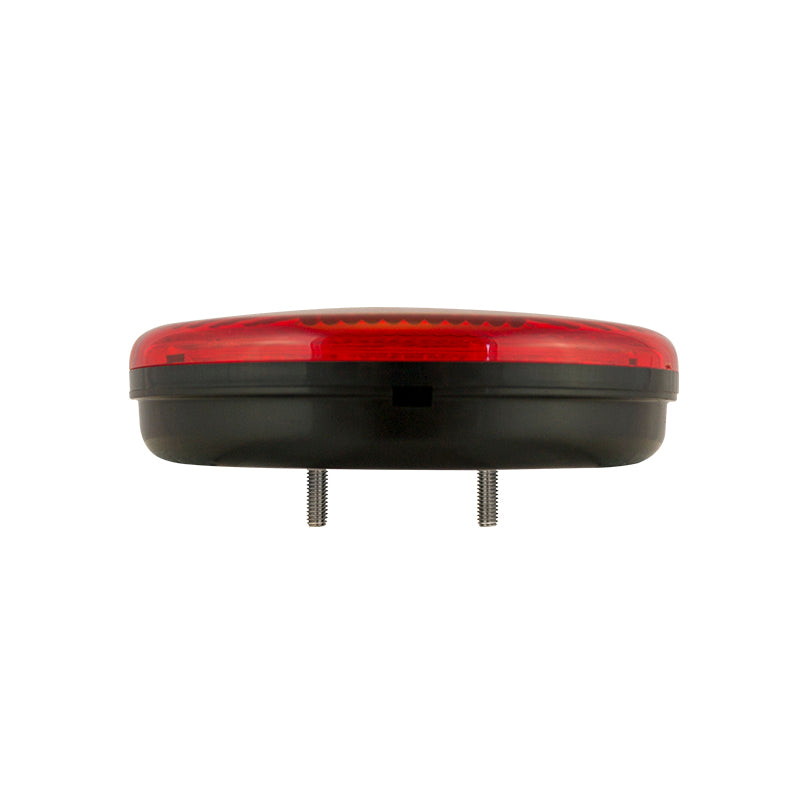

• Profile: low 40mm profile.

Applications:

Ideal for use on trailers, trucks, commercial vehicles, agricultural equipment, and other vehicles requiring reliable and durable rear combination lighting.
