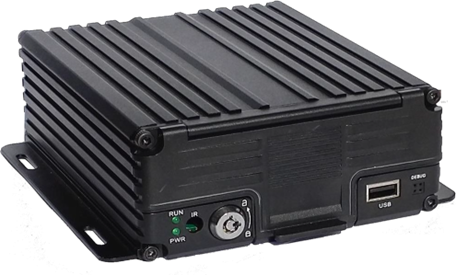

DVR Live Recording Device

DVR-LV4-365-SD-1080p - Compact and Reliable Surveillance Solution

Key Features:

• High-Resolution Recording: Capture crisp and clear 1080p video footage for exceptional detail.
• Efficient Storage: H.265 compression technology maximizes storage space, allowing for longer recording durations.
• Versatile Power Options: Operate on both 12V and 24V DC power sources to accommodate various applications.
• Robust Construction: Designed to withstand harsh environments with a wide operating temperature range and vibration resistance.
• Smart Features: Benefit from timer delay shutdown, smart power voltage system, G-sensor, GPS, and optional live view and panic button functionality.
• Quick Startup: Begin recording within 20 seconds of power-up for immediate surveillance.

Technical Specifications:

• Operating Voltage: 12V / 24V DC
• Power Consumption: 1.5A @ 12V DC
• Operating Temperature: -20°C ~ +80°C
• Dimensions: 162mm (W) x 153mm (D) x 52mm (H)
• Vibration Rating: 40G
• Max Resolution: 1080p (1920 x 1080)
• Recording Duration per CH: 1GB per hour (1080p)
• Video Compression: H.265 Main profile
• Audio Compression: G.726/G.711/ADPCM
• Power Up Time to Record: 20 seconds

The DVR-LV4-365-SD-1080p is a compact and reliable surveillance solution ideal for various applications, offering high-quality video recording, efficient storage, and versatile features.
