Durite 7 inch Camera System with Sony CCD Camera and Bracket. - 0-775-51

Durite 7-inch Camera System with 2 camera inputs and is supplied with 1 Sony CCD camera and a U-shaped bracket.

Suitable for 12V/24V applications.

One additional camera can be used with this kit.

E Marked ECE R10 approved.

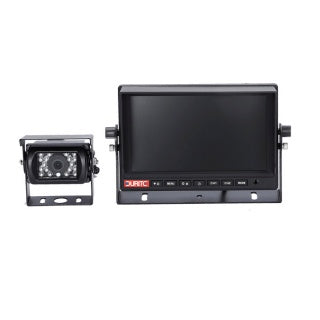

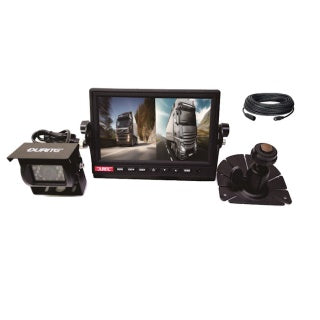

The system includes a 7-inch TFT-LCD monitor, one rear-view Sony CCD camera, a 20m cable, a Fan Bracket and a U Shape Steel Bracket.

Specifications

Display Device 7-inch Colour TFT LCD

Interface Digital TTL

Resolution 800 x RGB x 480

Luminance (Nits) 500

System PAL / NTSC (Auto)

Contrast Ratio 500:1

Power Consumption 5W

Power Supply 12V/24VDC

View Angle (degrees) L 70, R 70, U 60, D 70

Connection Male 4 PIN Aviation

Operating Temperature -20 degrees C to +70 degrees C

Weight 500g

Type 1/3 inch Sony CCD

Voltage 12VDC

Sensitivity 0 LUX with IR on

S/N Ratio 48dB

Current Draw (at 12V) 200mA

Electronic Shutter Auto

Lens f 2.8mm

View Angle Horizontal @120 degrees,vertical@ 95 degrees

Video Output 1 Vpp, 75 Ohm

IP Rating IP68

Auto Gain Control Yes

Microphone Yes

Weight 360g

Operating Temperature -20 degrees C to +70 degrees C

Certificates ECE R10.05 This system helps HGVs comply with DVS regulations, reducing blind spots and enhancing safety for vulnerable road users.
