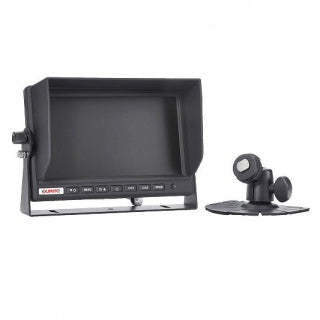

Durite 7″ 12V-24V 2-Ch Split Screen Monitor With Bracket - 0-775-26
£205.88 | £247.06 inc VAT
Durite split-screen 2-channel monitor with fan-shaped bracket.
View 2 cameras on one screen, recommended by FORS and Direct Vision Standard (DVS).
Sunshade and U-shape steel bracket.
E-Marked ECE R10 approved.
Monitor Connections
CH1/CH2 Camera Picture Signal Input - One or both of the camera input connectors can be used to connect to the cameras. (DC+ power supply to the cameras is fed through these connectors).
DC 12-24 Volt Power Supply Leads - Ensure the wires are connected correctly to prevent damage. Connect the Red wire with the fuse holder to an ignition-switched positive feed, the Yellow wire (trig1) to the reverse gear switch (+ve) and the Black wire to the vehicle chassis ground (negative earth systems only). Blue wire (trig 2) can be used if necessary.
Note: If the cigarette power lead is not being used, a suitable 2amp fuse must be placed in the positive supply line. This system helps HGVs comply with DVS regulations, reducing blind spots and enhancing safety for vulnerable road users.
