Wireless Li Ion Magnetic Reversing Camera - 0-774-82 12V/24V DC

Wireless Li Ion Magnetic Reversing Camera - 0-774-82

by Durite
SKU 0-774-82

£327.60 | £393.12 inc VAT

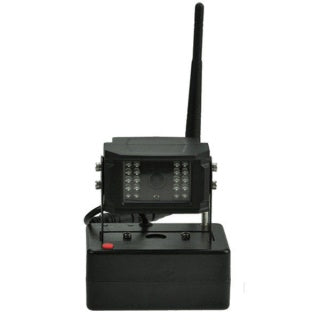

Quickly interchange trailers. The new Durite magnetic camera is easily mounted onto any point of your trailer and is compatible with the wider durite range, so you have the flexibility to record, live stream, and/or comply with FORS and Direct Vision Standard (DVS).

Crystal clear image: 700TVL 2.8mm lens.

  • 8600mAh Battery can last up to 9 hours.

    • Strong magnetic base to resist high speeds.

  • 100m transmission range.

    • Protected to IP67/IP69K.

    Vibration 10G.

    Technical Specifications - Camera TX

    Image sensor 1/3 inch Sharp CCD

    Resolution 700TVL

    Lens 2.8mm

    Sync. system Internal

    Viewing angle 120 degrees H, 95 degrees V

    TV System PAL

    Video output 1.0vp-p,75ohm AHD

    RF working frequency 2.4-2.4835G

    RF Modulation Mode QPSK MD301RE 16QAM MD301SE

    Antenna Impedance 50ohm

    Transmitted power 18dBm

    Signal transmission distance 100Metres

    Min illumination 0.1 Lux

    Night vision distance Up to 8 Metres

    Image mode Normal

    Vibration 10G

    IR LED light 20 LEDs

    Power voltage 12VDC

    Waterproof rating IP67 / IP69K

    Voltage / Power 12V 1.2W, 24V 2.4W

    Camera connector type 4 PIN Aviation *(See images for layout)

    Operating temperature -30 degrees C ~ 70 degrees C, RH95% MAX

    Storage temperature -30 degrees C ~ 75 degrees C, RH95% MAX

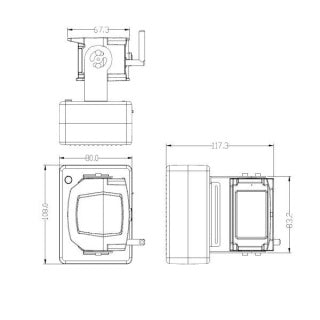

    Dimensions Please see the image diagram

    Certificate E Marked R10 EMC

    WARNINGS

    Before using this unit, please read these instructions carefully. Take special care to follow the warnings and safety suggestions listed below. Keep these instructions for future reference. There are no user-serviceable parts within the unit. Refer servicing to qualified service personnel.

    PRECAUTIONS

    • Please ensure you are familiar with and comply with local traffic and driving regulations.

    • Connection - The camera should only be connected to a Durite CCTV system.

    • Heat - Do not install the camera near heat sources.

    • Mounting - Ensure the camera is facing the desired direction before fixing the camera base. If fixing to isolated return chassis, the camera bracket should be isolated from the vehicle chassis.

    • Service - The user should not attempt to service these units beyond that described in these instructions. All other servicing should be referred to an authorised service technician.

    GENERAL

    The camera has a CCD image sensor, which gives a high-quality picture, and its solid-state circuitry provides an extremely long life. The compact size and single connection make it easy to install. Automatic gain control (AGC) provides a clear image in both strong sunlight and low light conditions. It is recommended that all camera lead connections are additionally sealed by wrapping them with suitable tape or applying heat shrink sleeving. Connecting the system and testing before fixing it is recommended to ensure the correct field of view is displayed.

    OPERATION

  • 1. Plug in the camera connection power cable, press the POWER ON button, and the green indicator light will turn on. Then press the POWER ON button twice; the blue light should now turn on, and the unit has entered into the pairing state.
  • 2. Connect the 4P aviation connector on the receiver RX box (purchased separately)side to the device of your choice, e.g. monitor, MDVR. Connect DC12-24V power to the red +VE fly lead, and the red light should turn on.
  • 3. When the camera and the receiving box are in the pairing state at the same time, the pairing can be successful. At this time, the blue indicator light of the receiving box is on, and the display has image output.
  • 4. After the camera battery base battery is exhausted, it can be connected to the matching adapter for charging, and the red indicator light will light up when charging. Remarks: It can operate and charge at the same time. This system helps HGVs comply with DVS regulations, reducing blind spots and enhancing safety for vulnerable road users.
    •
