Durite

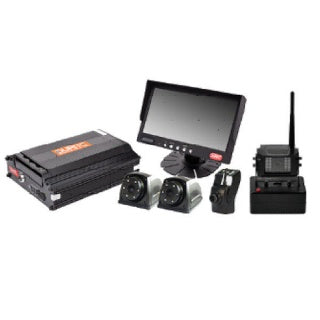

Durite 4G HDD DVR Kit Mag Cam Plus 3 Cams - 0-774-68

Durite 4G HDD DVR Kit Mag Cam Plus 3 Cams - 0-774-68

Regular price £2,491.72 GBP
Regular price Sale price £2,491.72 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Durite 4G HDD DVR system with Mag Cam features a rechargeable wireless magnetic camera enabling you to interchange trailers quickly. Record high-resolution evidence to the cloud live stream, and keep your drivers and others safe on the road.

Perfect for 12V and 24V applications, vans, rigid vehicles and articulated lorries.

Using a DVR can result in a 30 per cent reduction in driving-related incidents from improved driver behaviour.

Reduce insurance premiums and expedite claims.

Record on a DVR or straight to the cloud.

Mag Cam - 8 hours of continuous use in the daytime.

Mag Cam - conveniently charges in the cab.

  • 2-year warranty.
  • Technical Specifications - Magnetic Camera TX

    Image sensor 1/3 inch Sharp CCD

    Resolution 700TVL

    Lens 2.8mm

    Sync. system Internal

    Viewing angle 120 degrees H, 95 degrees V

    TV System PAL

    Video output 1.0vp-p,75ohm AHD

    RF working frequency 2.4-2.4835G

    RF Modulation Mode QPSK MD301RE 16QAM MD301SE

    Antenna Impedance 50ohm

    Transmitted power 18dBm

    Signal transmission distance 100Metres

    Min illumination 0.1 Lux

    Night vision distance Up to 8 Metres

    Image mode Normal

    Vibration 10G

    IR LED light 20 LEDs

    Power voltage 12VDC

    Waterproof rating IP67 / IP69K

    Voltage / Power 12V 1.2W, 24V 2.4W

    Camera connector type 4 PIN Aviation *(See images for layout)

    Operating temperature -30 degrees C ~ 70 degrees C, RH95% MAX

    Storage temperature -30 degrees C ~ 75 degrees C, RH95% MAX

    Dimensions Please see the image diagram

    Certificate E Marked R10 EMC This system helps HGVs comply with DVS regulations, reducing blind spots and enhancing safety for vulnerable road users.
