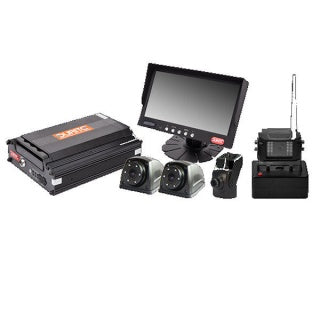

Durite 1TB HDD DVR system with Mag Cam features a rechargeable wireless magnetic camera enabling you to interchange trailers quickly. Record high-resolution evidence, reduce blind spots, and keep your drivers and others safe on the road.
Perfect for 12V and 24V applications, vans, rigid vehicles and articulated lorries.
Using a DVR can result in a 30 per cent reduction in driving-related incidents from improved driver behaviour.
Reduce insurance premiums and expedite claims.
Record on a DVR or straight to the cloud.
Conveniently charge the Mag Cam in the cab.
Mag Cam image: 700TVL 2.8mm lens.
Strong magnetic base to resist high speeds.
Reduce blind spots and incidents.
Suitable for 12 and 24V vehicles.
Technical Specifications - Magnetic Camera TX
Image sensor 1/3 inch Sharp CCD
Resolution 700TVL
Lens 2.8mm
Sync. system Internal
Viewing angle 120 degrees H, 95 degrees V
TV System PAL
Video output 1.0vp-p,75ohm AHD
RF working frequency 2.4-2.4835G
RF Modulation Mode QPSK MD301RE 16QAM MD301SE
Antenna Impedance 50ohm
Transmitted power 18dBm
Signal transmission distance 100Metres
Min illumination 0.1 Lux
Night vision distance Up to 8 Metres
Image mode Normal
Vibration 10G
IR LED light 20 LEDs
Power voltage 12VDC
Waterproof rating IP67 / IP69K
Voltage / Power 12V 1.2W, 24V 2.4W
Camera connector type 4 PIN Aviation *(See images for layout)
Operating temperature -30 degrees C ~ 70 degrees C, RH95% MAX
Storage temperature -30 degrees C ~ 75 degrees C, RH95% MAX
Dimensions Please see the image diagram
Certificate E Marked R10 EMC This system helps HGVs comply with DVS regulations, reducing blind spots and enhancing safety for vulnerable road users.
