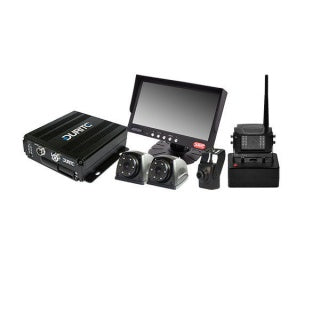

Durite SD Card DVR Kit Mag Cam and 3 Cameras - 0-774-58 12V/24V DC

Durite SD Card DVR Kit Mag Cam and 3 Cameras - 0-774-58

by Durite
SKU 0-774-58

£1,302.92 | £1,563.50 inc VAT

Durite SD card DVR system with Mag Cam features a rechargeable wireless magnetic camera enabling you to quickly interchange trailers. Record high-resolution evidence, reduce blind spots, and keep your drivers and others safe on the road.

Perfect for 12V and 24V applications; vans, rigid vehicles and articulated lorries.

The use of a DVR can result in a 30 per cent reduction in driving-related incidents from improved driver behaviour.

Reduce insurance premiums and expedite claims.

Record on a DVR or straight to the cloud.

  • 8 hours of continuous Mag Cam use in the daytime.

    • Conveniently charge the Mag Cam in the cab.

    Mag Cam image: 700TVL 2.8mm lens.

  • 8600mAh Battery can last up to 9 hours.

    • Strong magnetic base to resist high speeds.

  • 100m transmission range.

    • Reduce blind spots and incidents.

    Suitable for 12 and 24V vehicles.

  • 4 cameras.
  • 2-Year warranty.

    • Technical Specifications - Camera TX

    Image sensor 1/3 inch Sharp CCD

    Resolution 700TVL

    Lens 2.8mm

    Sync. system Internal

    Viewing angle 120 degrees H, 95 degrees V

    TV System PAL

    Video output 1.0vp-p,75ohm AHD

    RF working frequency 2.4-2.4835G

    RF Modulation Mode QPSK MD301RE 16QAM MD301SE

    Antenna Impedance 50ohm

    Transmitted power 18dBm

    Signal transmission distance 100Metres

    Min illumination 0.1 Lux

    Night vision distance Up to 8 Metres

    Image mode Normal

    Vibration 10G

    IR LED light 20 LEDs

    Power voltage 12VDC

    Waterproof rating IP67 / IP69K

    Voltage / Power 12V 1.2W, 24V 2.4W

    Camera connector type 4 PIN Aviation *(See images for layout)

    Operating temperature -30 degrees C ~ 70 degrees C, RH95% MAX

    Storage temperature -30 degrees C ~ 75 degrees C, RH95% MAX

    Dimensions Please see the image diagram

    Certificate E Marked R10 EMC This system helps HGVs comply with DVS regulations, reducing blind spots and enhancing safety for vulnerable road users.
